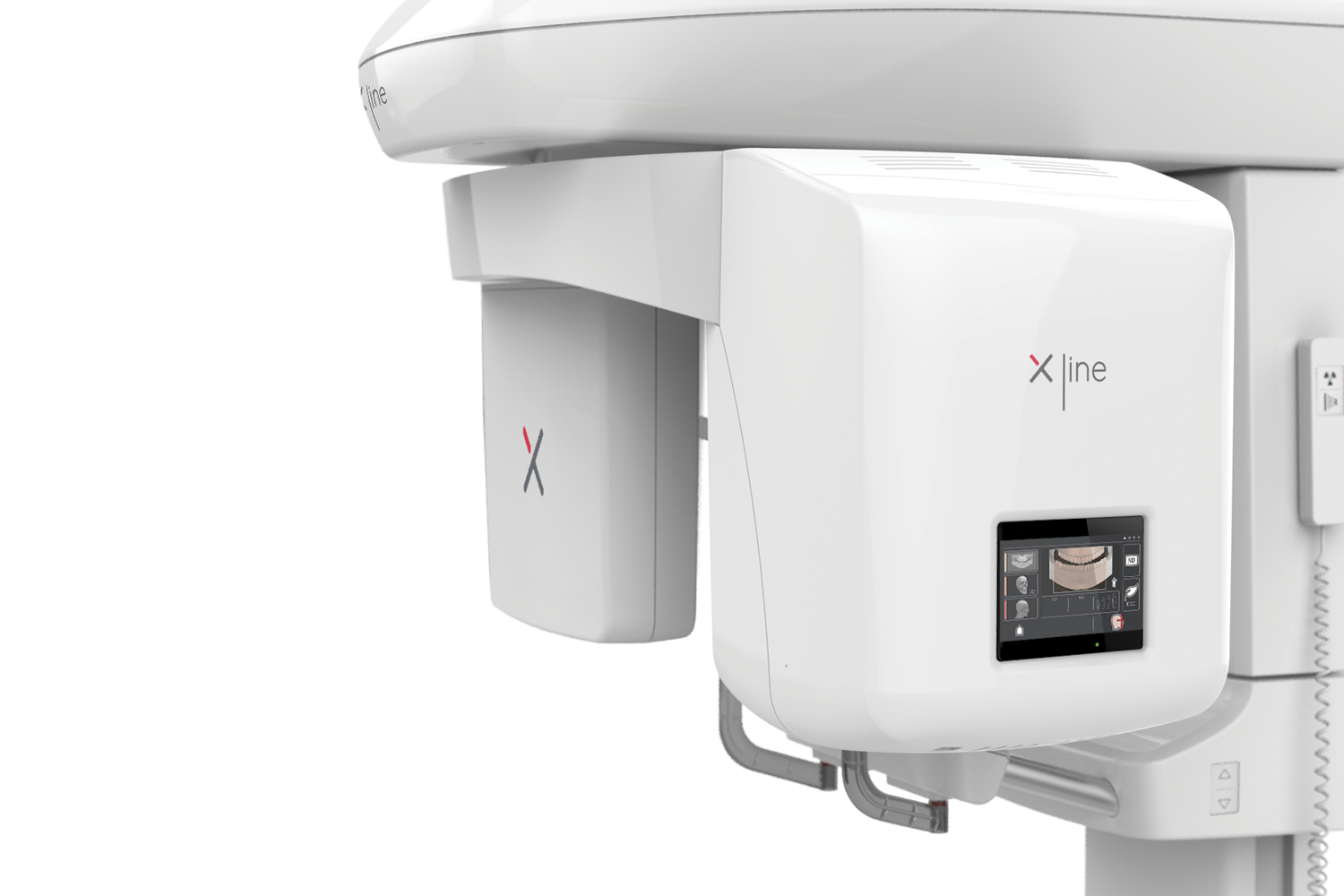

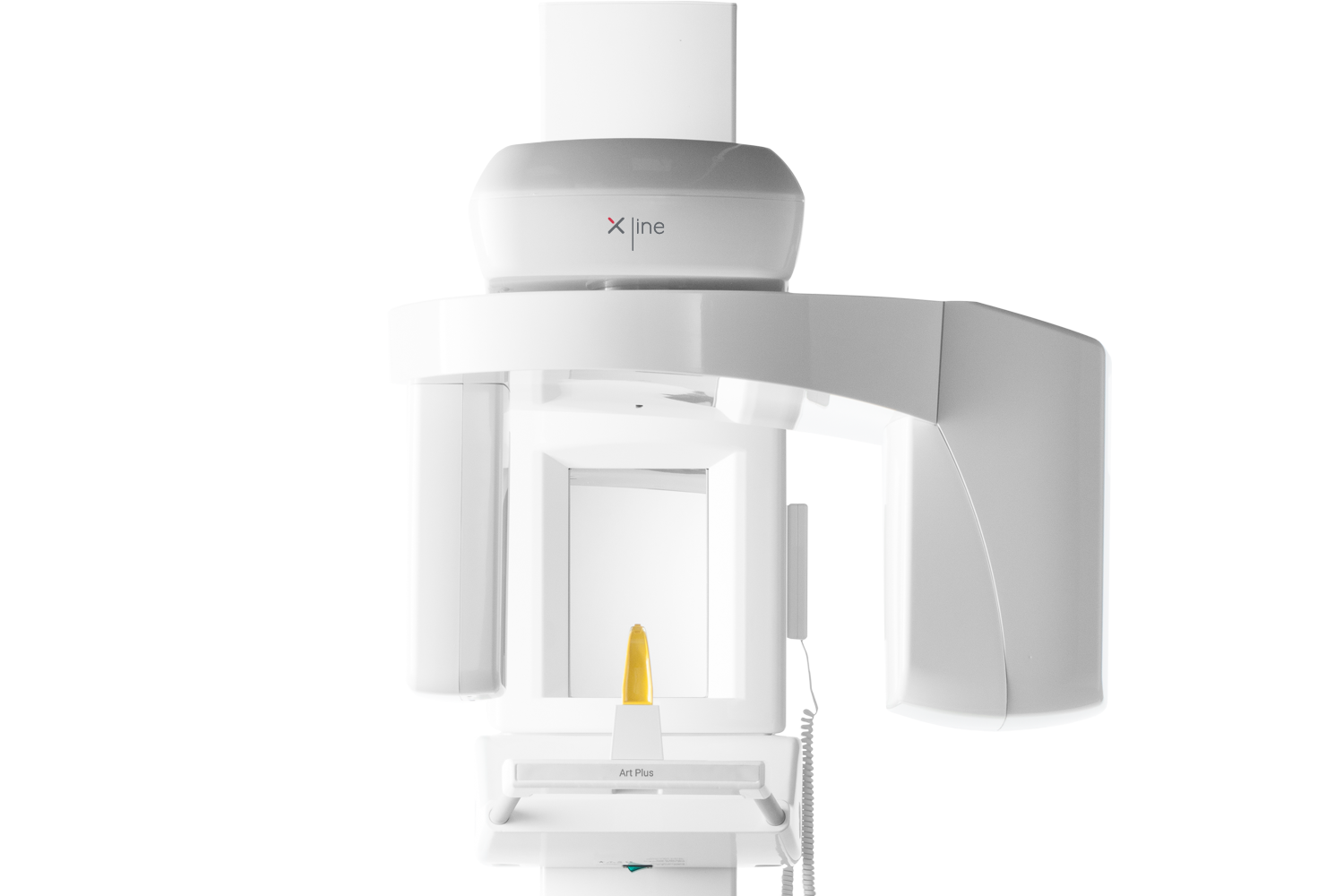

XDI-300 (Stellaris 3D) covers a variety of diagnostics in 2D, 3D and Ceph with multiple fields of view, programs for panoramic examinations and cephalometric scans.
The minimalist, elegant, space-saving design allows installation of XDI-300 (Stellaris 3D) in areas where conventional devices would not fit.
Control of the system is available from your PC screen as well as on the unit's touchscreen, allowing straightforward program selection with hints for correct positioning.
XDI-300 (Stellaris 3D) covers a complete range of CBCT programs for various applications – from endodontics through surgery and implantology to bone augmentations.
Adult and, more importantly, child programs are crucial for ECO low dose examinations, allowing high diagnostic image quality for both overview and demanding diagnostic tasks.
Ambient lighting creates a comfortable atmosphere for the patient and allows to monitor the unit status from a distance.
Latest sensor design, technology and unit robotics have been used to achieve high precision level of detail and smooth, quiet operation. The machine allows for repeated exposures without having to wait.
| Sensor Technology | CMOS Flat Panel, CSI Flat Panel for ceph |
| Pixel size | 98 µm |
| Voxel Size | 80 µm |
| Focal Spot | 0.5 (IEC 336 / 1997) |
| Tube Voltage | 60 - 86 kV |
| Tube Current | 2.5 - 10 mA |
| Exposure time 2D | 4.6 - 14.2 seconds |
| Exposure time 3D | 5 - 16.9 seconds |
| Exposure Time Ceph One-Shot | 0,5s adult, 0,2s child |
| 3D Active Sensor Area | 160x160 mm |
| Ceph Image Size | 240x300 mm |
| Volume size 3D | 5x6,5, 7x6,5, 6x10, 8x6,5, 8x10, 11x6,5, 11x10 |
| Weight | 109kg without ceph, 137kg with ceph |
| Panoramic Programs | in total 9: adult pano, child pano, dentition, BW, TMJ, sinuses, half dentition left, half dentition right, anterior teeth. |
| 3D Programs | in total 27: adult full, child full, adult and child upper and lower jaw, adult and child sinuses, surgical and implant volume front, left and right, hemi-arc left and right, upper and lower, ENDO volume in 6 different positions, TMJ right and left. |
| Ceph Programs | LL 30x24, LL18x24, AP, PA, Carpus |
| Patient Sizes | Child, teenager, woman, man |
| Software | X-Light |
| Features | 3 in 1 or 2 in 1 upgradeable to 3 in 1 |
| Footprint | 140x110 cm without CEPH, 240 x 110cm with CEPH |
| Patient position | Standing or sitting |
| Wheelchair acessible | Yes |
