Applications
Ideal for General Radiography, Chest X-Ray, Abdominal Imaging, Orthopedic Imaging, and routine diagnostic examinations in hospitals, clinics, and community health centers.
Technical Specifications (Summary)
| Component | Specification |
|---|---|
| Model | TR-300A |
| Power Supply | 380V / 220V ±10%, 50Hz ±0.5Hz |
| High-Voltage Generator | Single-phase full-wave rectification Max DC Output: 125kV / 300mA |
| Radiographic Voltage | 50kV ~ 125kV (infinitely variable) |
| Radiographic Current | Small Focus: 50mA, 100mA Big Focus: 100mA, 200mA, 300mA |
| Exposure Time | 0.05s ~ 6.3s (20 grades, R10 coefficient) |
| X-Ray Tube | Model: XD51-20.40/125 Rotary Anode / Dual Focus: 1x1mm (Small), 2x2mm (Big) |
| Radiographic Table | Table Dimensions: 2060mm x 730mm x 700mm Table Movement: 800mm (Longitudinal) / 230mm (Transverse) |
| Tube Stand Movement | Vertical Travel: 1140mm ~ 1800mm Rotation around Cross Arm: ±180° |
| Max Cassette Size | 14″ x 17″ (356mm x 432mm) |

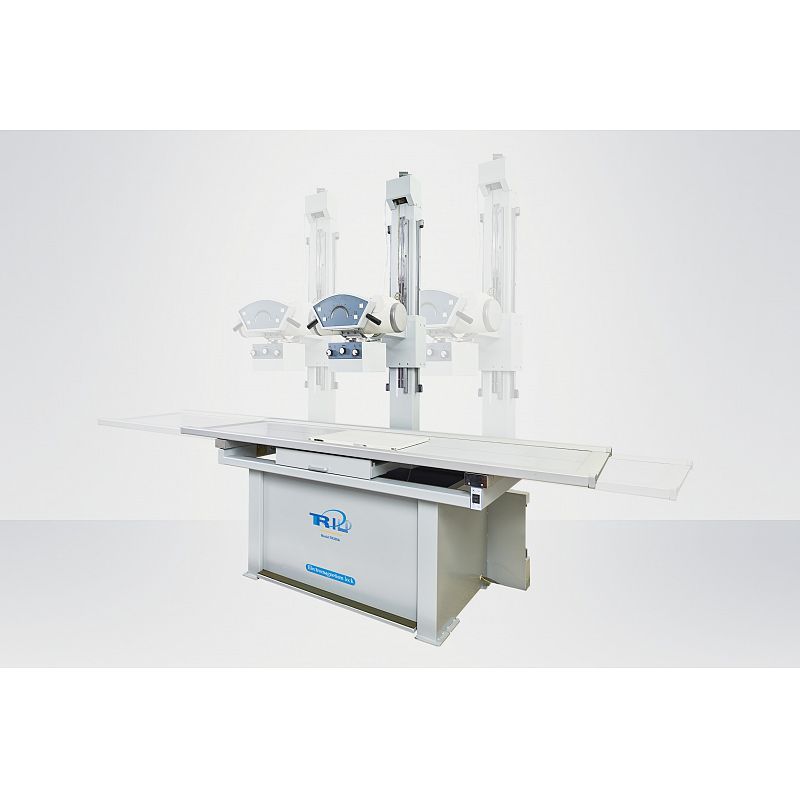

The TR-300A is a reliable, single-tube, single-bed diagnostic X-ray system designed for general radiography. Featuring a rotary anode X-ray tube, single-phase full-wave rectification, and intuitive digital controls, it delivers consistent performance for routine examinations in hospitals and clinics.
Full Description
Dependable Performance for Routine Diagnostics
The TR-300A is a versatile and durable stationary X-ray system engineered to meet the daily demands of radiology departments. With its robust 300mA high-voltage generator, precise digital timing, and flexible positioning, it provides accurate and reliable imaging for a wide range of general radiographic applications.
Key Features & Benefits
Integrated Design: The radiographic bed, pillar, and vibrating ray-filter form a single, stable unit without top or bottom tracks, simplifying installation and floor maintenance.
